Description

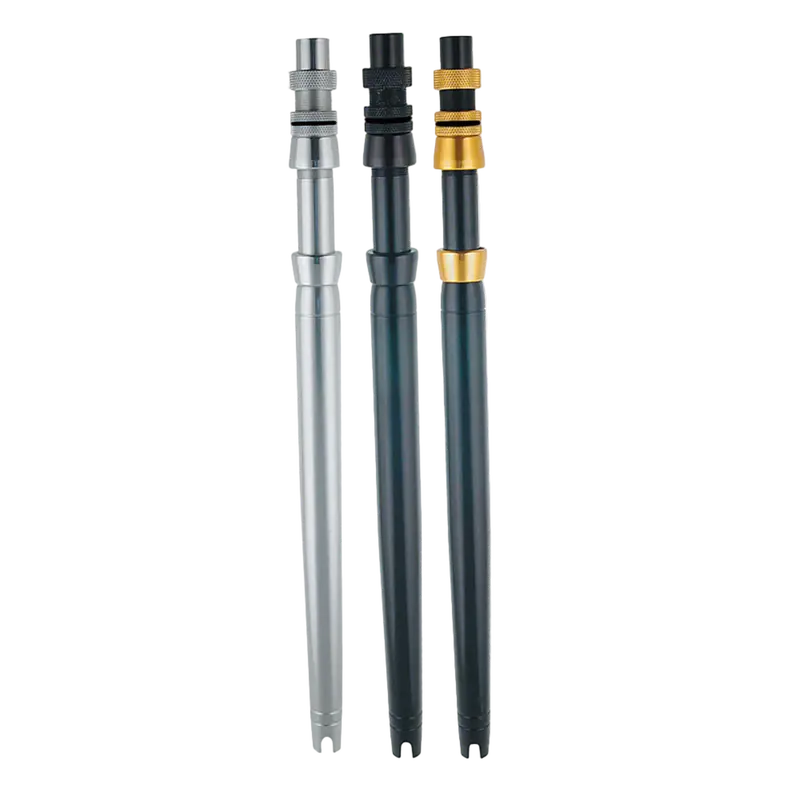

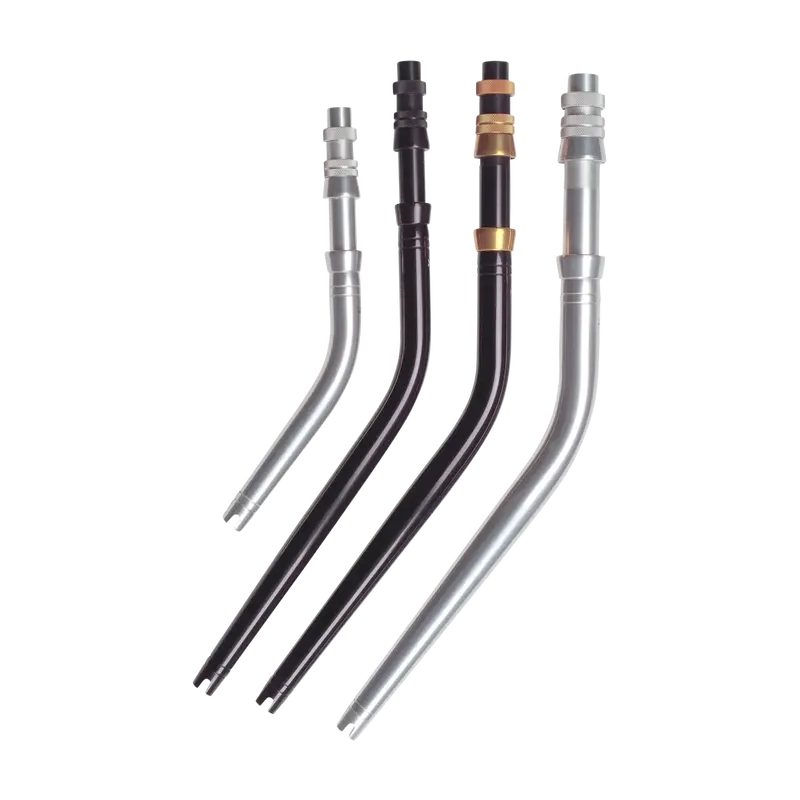

The AFTCO Unibutt® is the legendary one-piece handle and reel seat system that revolutionized offshore trolling rods. Formed from the finest marine alloy using AFTCO’s unique swaging process, the Unibutt® delivers unmatched strength, precision, and durability in a lightweight design.
By unitizing the butt and reel seat into one piece, the Unibutt® ensures permanent alignment of the gimbal, reel, and guides. This guarantees that your tackle tracks perfectly under load. Precision-machined ferrules allow easy interchangeability of rod tip sections, while an O-ring seal prevents corrosion between ferrule and reel seat. A Teflon® ring inside the collet nut provides a snug fit, prevents galling, and allows easy nut removal.
Available in a variety of anodized finishes, the AFTCO Unibutt® is the gold standard for offshore trolling and big-game rod construction.
Features & Benefits:
- One-piece swaged construction – stronger, lighter, and simpler than traditional butts
- Marine alloy body – maximum corrosion resistance for offshore use
- Permanent alignment – gimbal, reel, and guides always line up perfectly
- Precision-machined ferrules – interchangeable rod tip sections
- O-ring ferrule seal – prevents corrosion and extends component life
- Teflon® collet nut ring – snug fit, no galling, easy removal

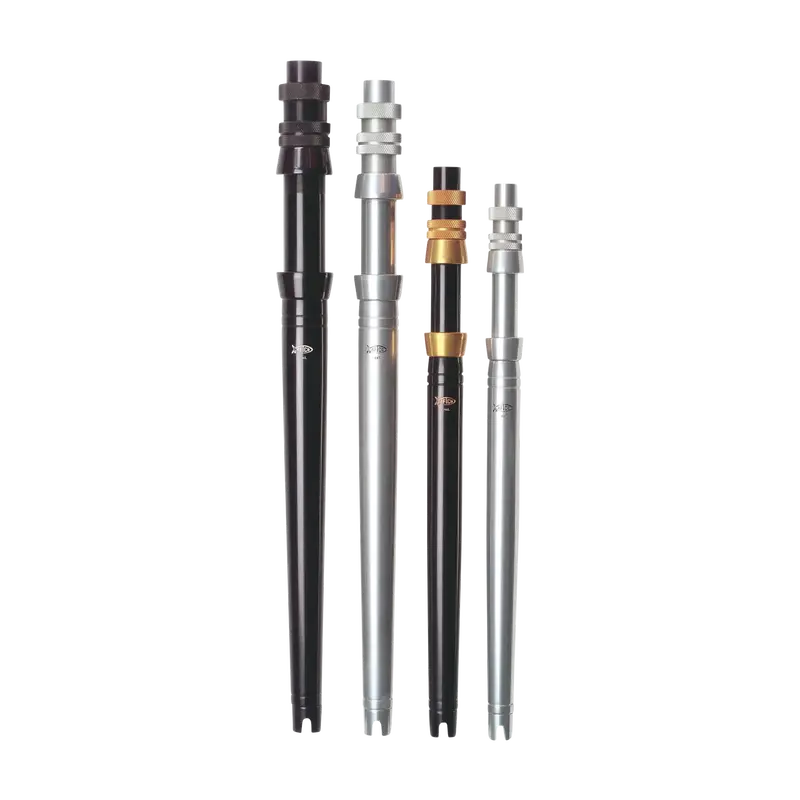

- Available anodized finishes – Silver, Black, Black/Gold, Black/Silver, Silver/Gold, Black/Shimano® Gold
AFTCO Unibutt® Sizing & Specifications
| Model | Rod Class | Weight | Length † | I.D. | O.D. | |
|---|---|---|---|---|---|---|
| UBS1 Short |
4-30 lb. | 14 oz. | 17.16″ | 0.750″ | 0.838″ | |
| UB1 |
4-30 lb. | 15.5 oz. | 19.16″ | 0.750″ | 0.838″ | |
| UBS2* Short |
30-50 lb. | 16 oz. | 17.76″ | 0.875″ | 0.970″ | |
| UB2* |
30-50 lb. | 18 oz. | 19.76″ | 0.875″ | 0.970″ | |
| UBSC2* Short / Curved |
30-50 lb. | 18 oz. | 19.76″ | 0.875″ | 0.970″ | |

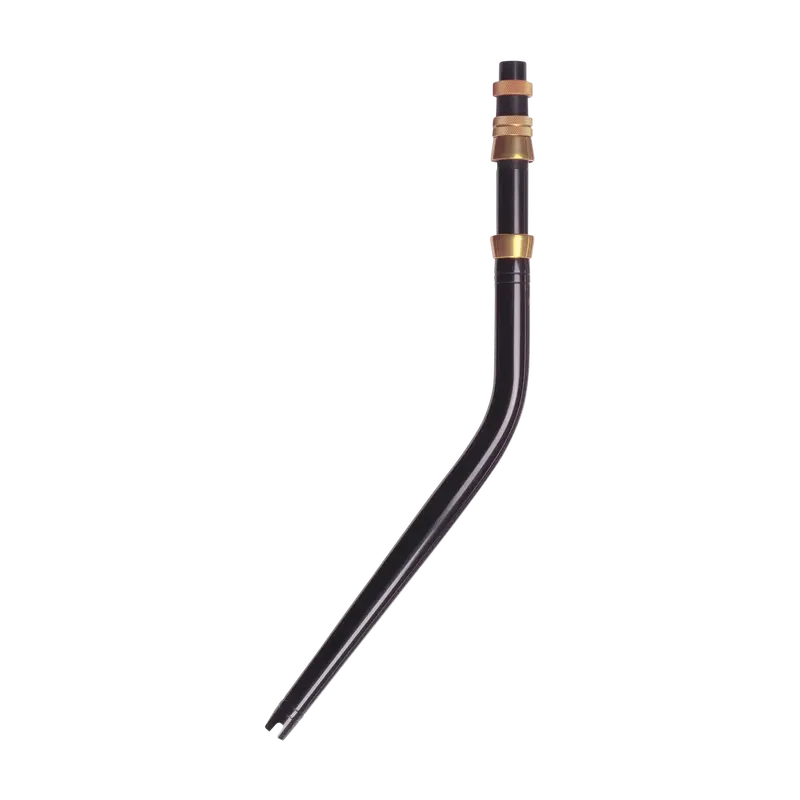

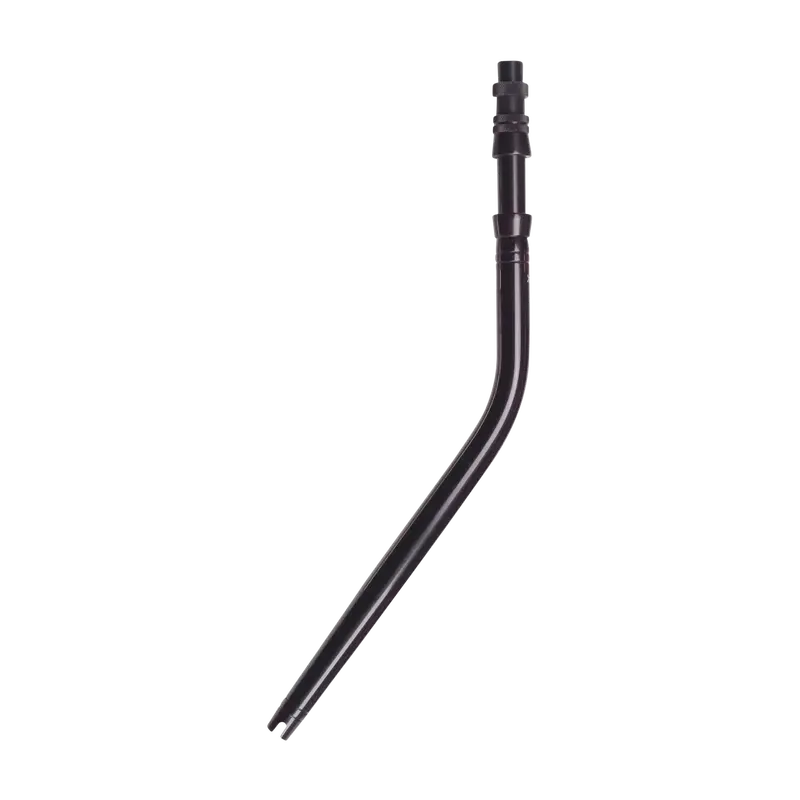

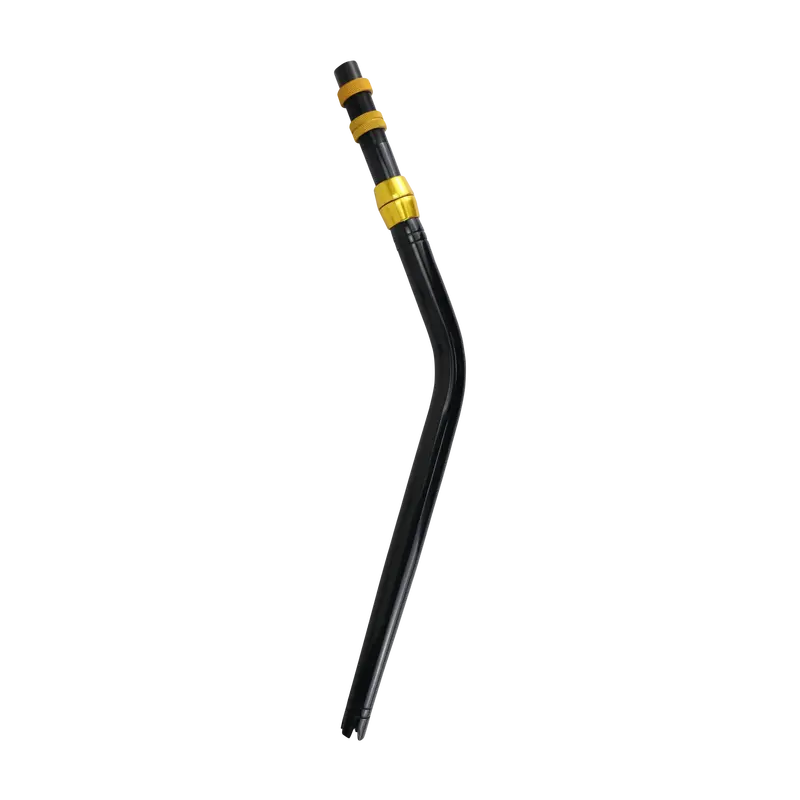

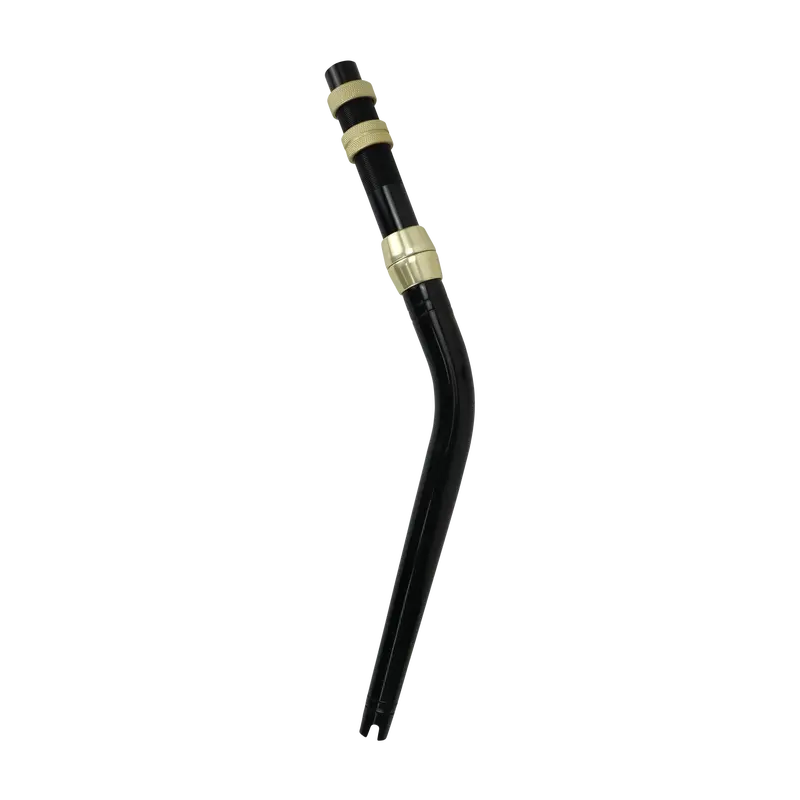

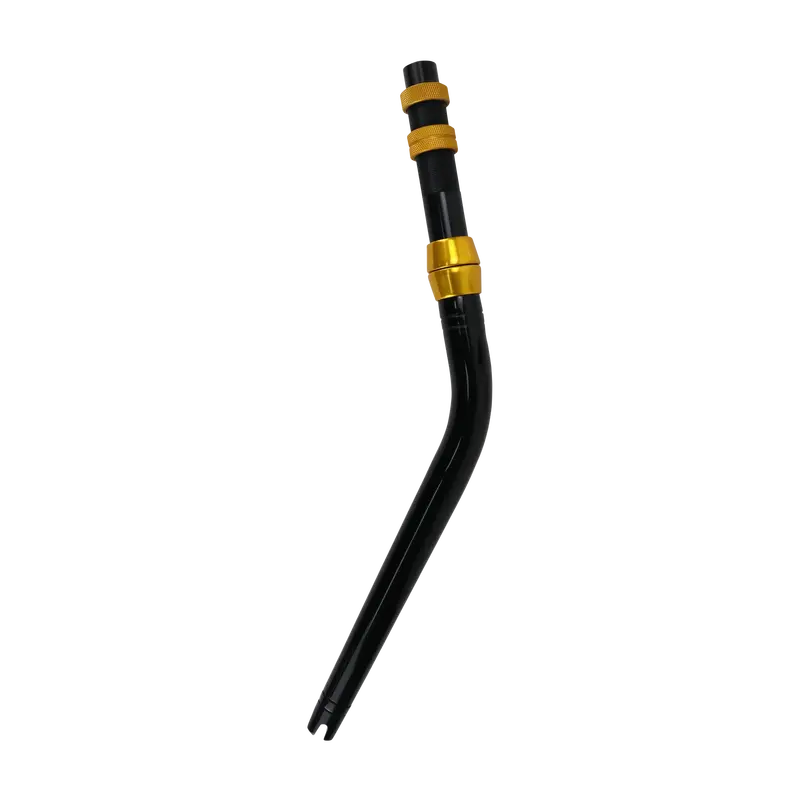

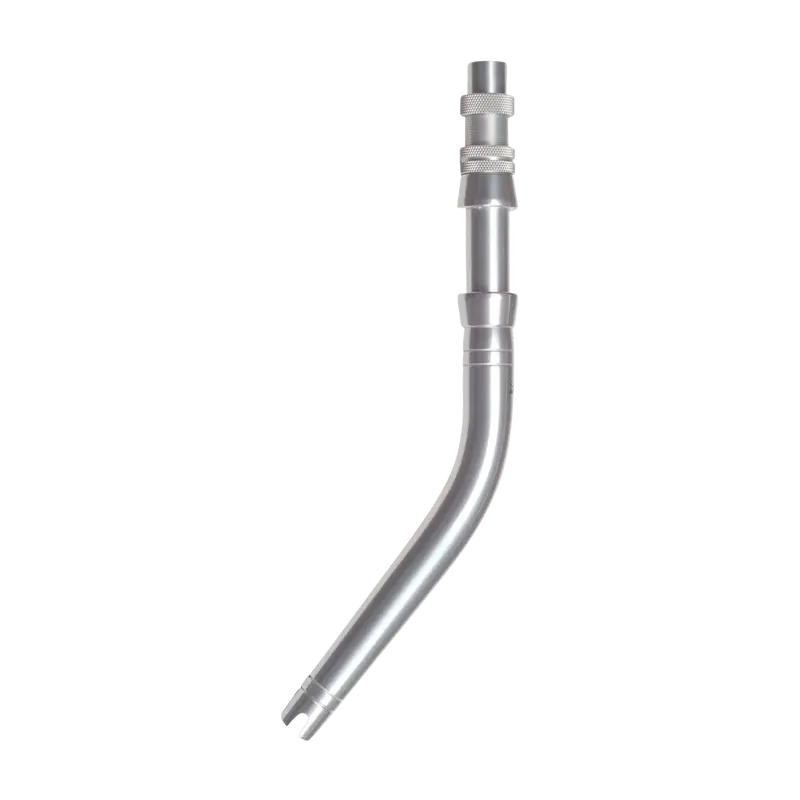

| UBC2* Curved |
30-50 lb. | 25 oz. | 26.76″ | 0.875″ | 0.970″ | |
| UB4 |
80 lb. | 25 oz. | 22.82″ | 1.000″ | 1.133″ | |
| UBSC4 Short / Curved |
80 lb. | 25 oz. | 22.82″ | 1.000″ | 1.133″ | |
| UBC4 Curved |
80 lb. | 30 oz. | 27.83″ | 1.000″ | 1.133″ | |
| UB6 |
130 lb. | 32 oz. | 23.45″ | 1.188″ | 1.336″ | |
| UBC6 Curved |
130 lb. | 37 oz. | 28.44″ | 1.188″ | 1.336″ | |
| *All #2 Unibutts and Storabutts feature hoods that will accommodate most size “80” reels † Length is measured from tip of threads to end of gimbal |
||||||
