Description
Specifications

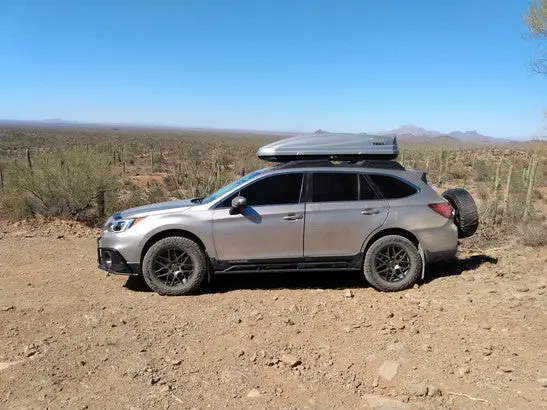

- Estimated Lift: 2″
- Estimated Ground Clearance: 10.7″
- Coilover suspension provides approximately 2-inches of front and rear lift
- **NOTE** Outbacks with the 3.6L 6cyl engine will sit slightly lower in the front due to the additional 259 lbs of engine weight. We recommend Spec-C Heavy load front coilovers due to this.
- Extended travel twin-tube struts improve control and comfort
- Ride height will vary based on additional accessory load
- Low nitrogen charge for a smoother response
- Vehicle specific valving
This Kit Includes:

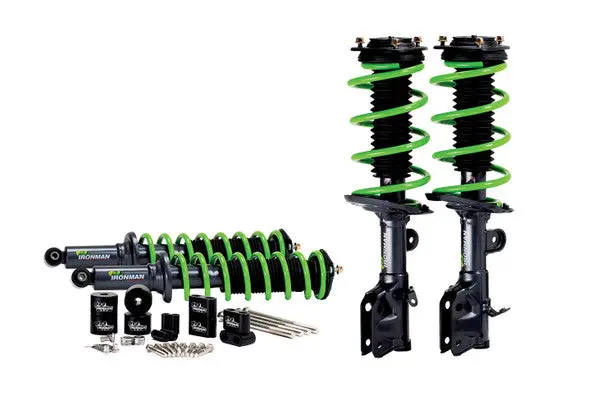

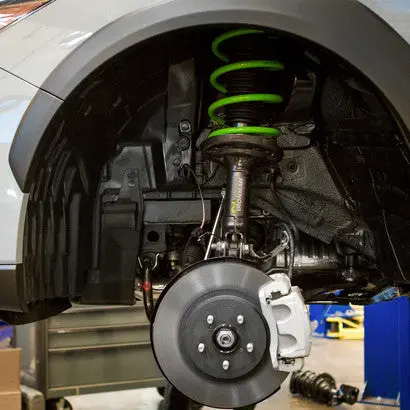

- Front and Rear Ironman 4×4 ATS coilovers (pre-built struts and springs for front and rear)
- Subframe spacer kit
- All mounting hardware for installation included
NOTES:
- May not be compatible with trailer hitches so double check your clearances ahead of install
- The Spec-C heavy-load springs are designed for vehicles that are constantly loaded with a minimum additional weight of 660lbs. Please be advised if you don’t keep the additional required weight in your vehicle, the ride will feel stiff. The Spec-C suspension is a great option if your vehicle is heavily loaded at all times.
Additional Specifications:
| ATS Medium Load | |
| Front Strut Extended: | 615mm |
| Front Strut Compressed: | 423mm |
| Rear Strut Extended: | 535mm |
| Rear Strut Compressed: | 351mm |
| Spring Rate Front: | 180(lbf/in) |
| Spring Rate Rear: | 200(lbf/in) |
| ATS Spec-C Heavy Load | |
| Front Strut Extended: | 615mm |
| Front Strut Compressed: | 423mm |
| Rear Strut Extended: | 535mm |
| Rear Strut Compressed: | 351mm |
| Spring Rate Front: | 190(lbf/in) |
| Spring Rate Rear: | 270(lbf/in) |
